£63.99
1999 in stock

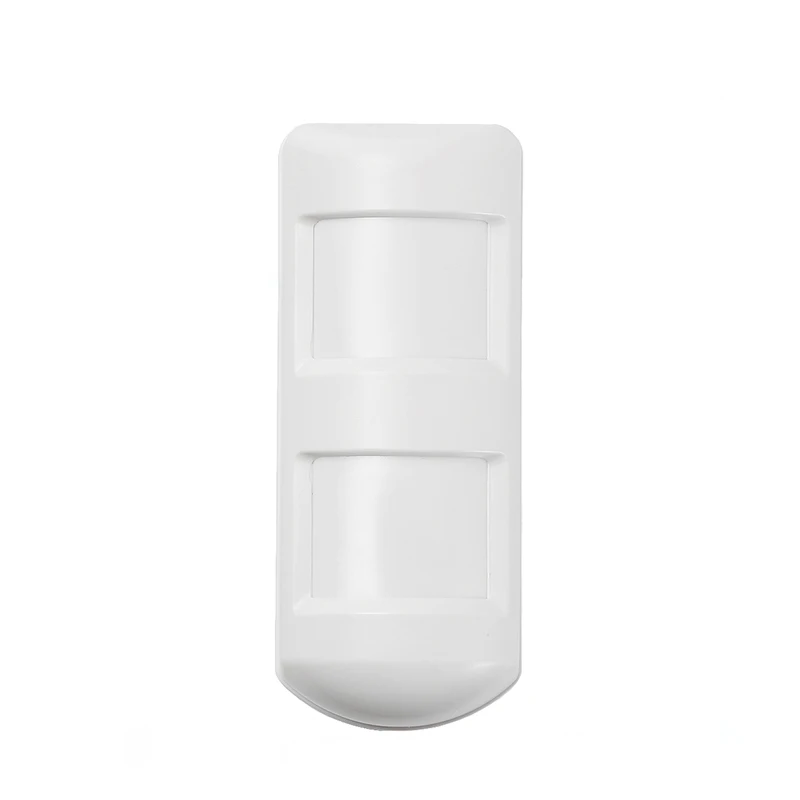

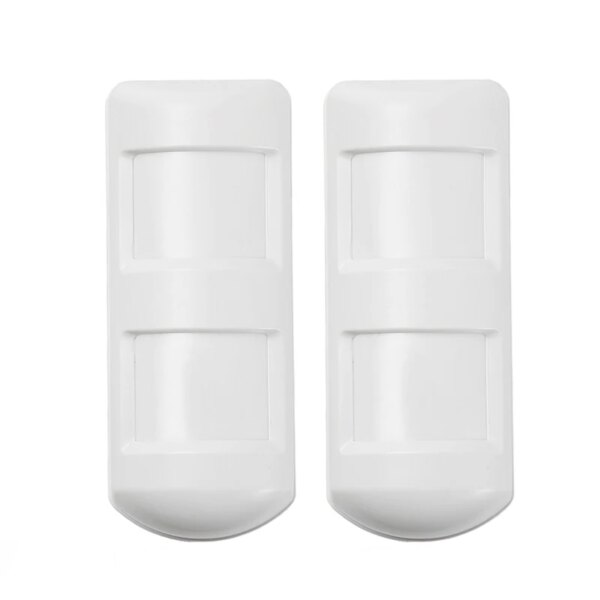

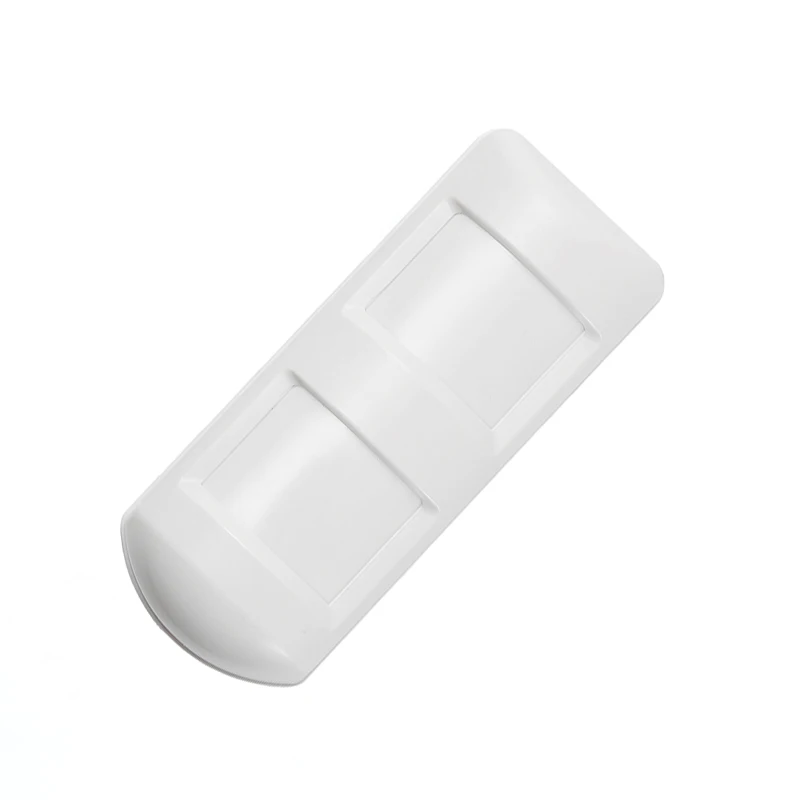

12-24VDC Wired Outdoor Dual PIR Motion Sensor Microwave Detector 12-Meter 100° Anti-pet Anti-tamper for Security Protection
Product Introduction:

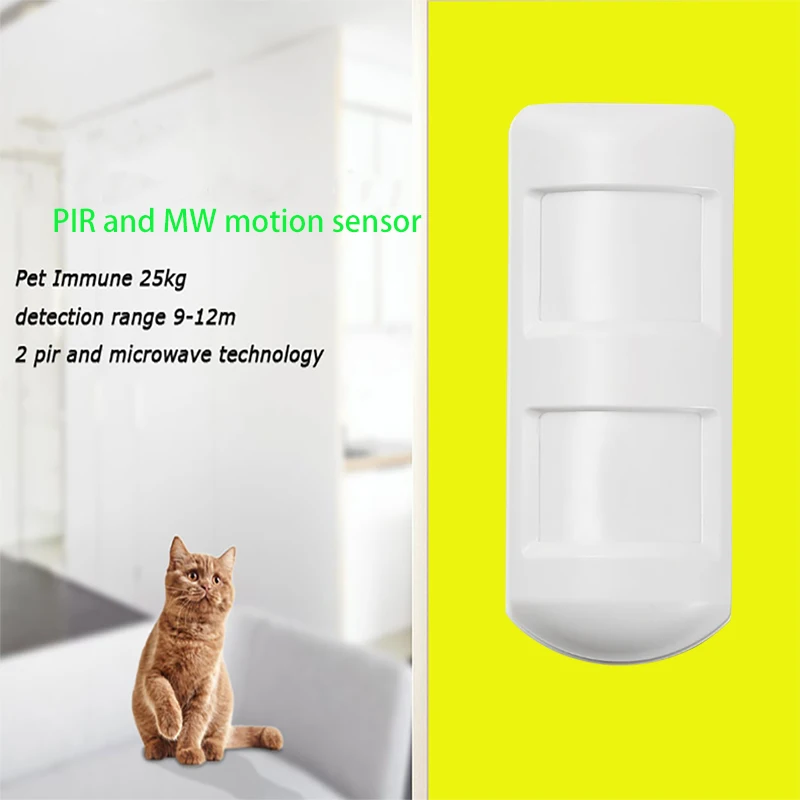

This outdoor sensor is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Signals of 3 sensors are with super stability and depend-ability by its advanced multi-grades digital signal processing technology. And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal “AND”and “OR” modes, also with “EI” mode to avoid the damage of dopes spraying on the lens. Its unique water-proof design is totally fit for outdoor installation. At the same time, also with other functions such as anti masking automatic setting and alarm type memory etc.
Parameter
Power supply: 12-24VDC
Current: 30mA
Install high: 1.5m.-2.4m
MW frequency: 10.525GHz
MW power(EIRP): 13dBm
PIR sensor: 2×Dual elements
Alarm time: 3s
Anti RFI: 0.1-1000MHz/30V/m
Anti-white light: >10000LUX
Anti EMI: 50000V
Anti-pet weight: 25Kg
Alarm output: NC/NO @2A/24VDC
Mask output: 100mA/24V
Temperature: -25℃/+55℃
Storage temp: -40℃/+65℃
Humidity(RH): 95%
Sensitivity: H/L Select
Detect speed: 0.2m/s to 3.5m/s
shell material: ABS Resin
Dimensions (HXWXD):163mm×67mm×54mm

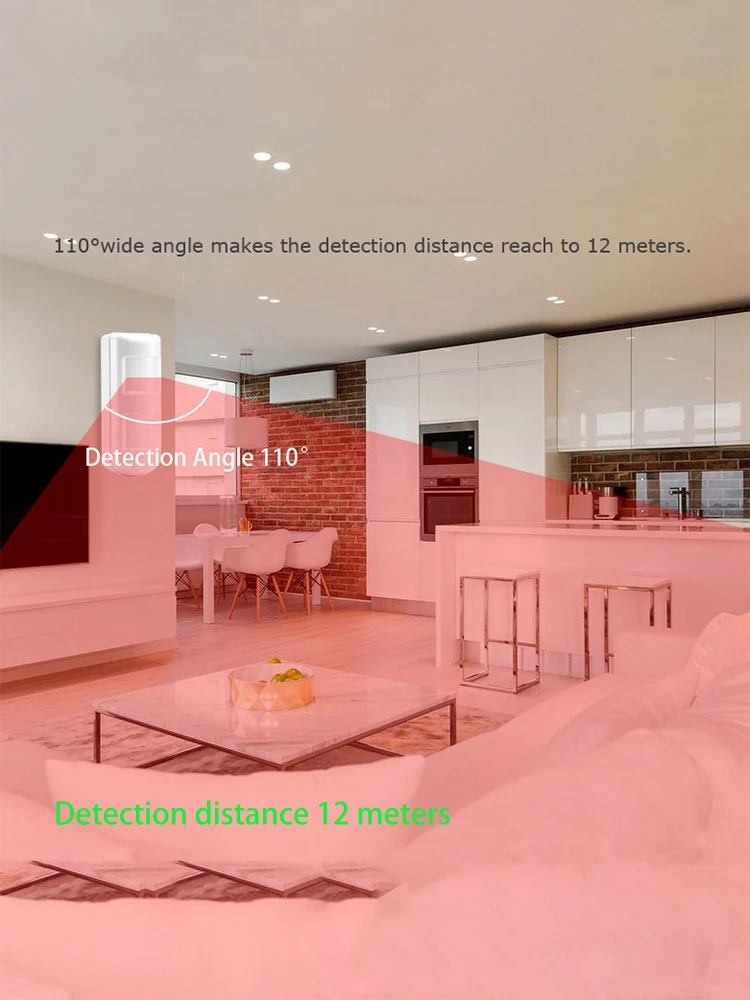

Coverage: 12m×12m 100°(wide lens)
12m×3m 12°(curtain lens)
12m×12m 100°(pet lens)
Features

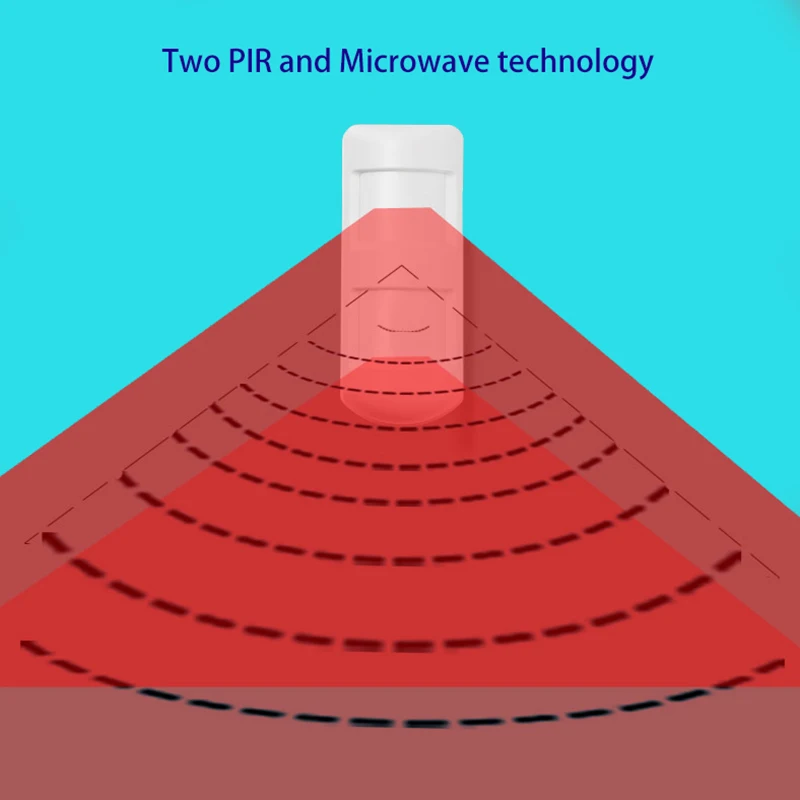

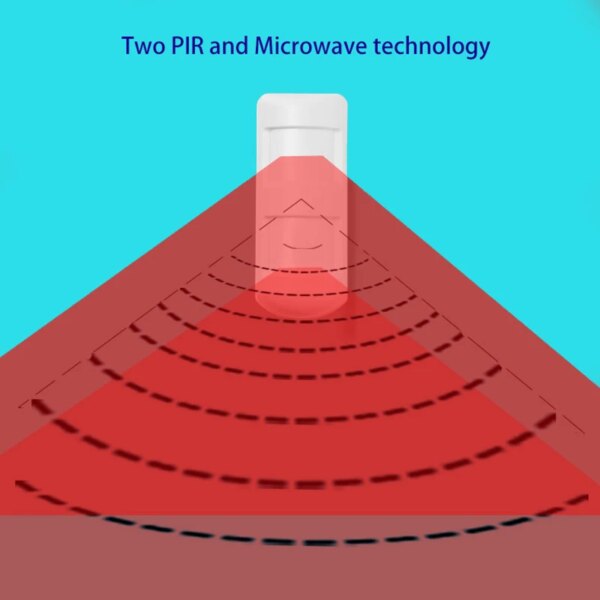

-Two PIR and MWdetection tech
-Automatic setting of anti-masking
-Microwave synchronization

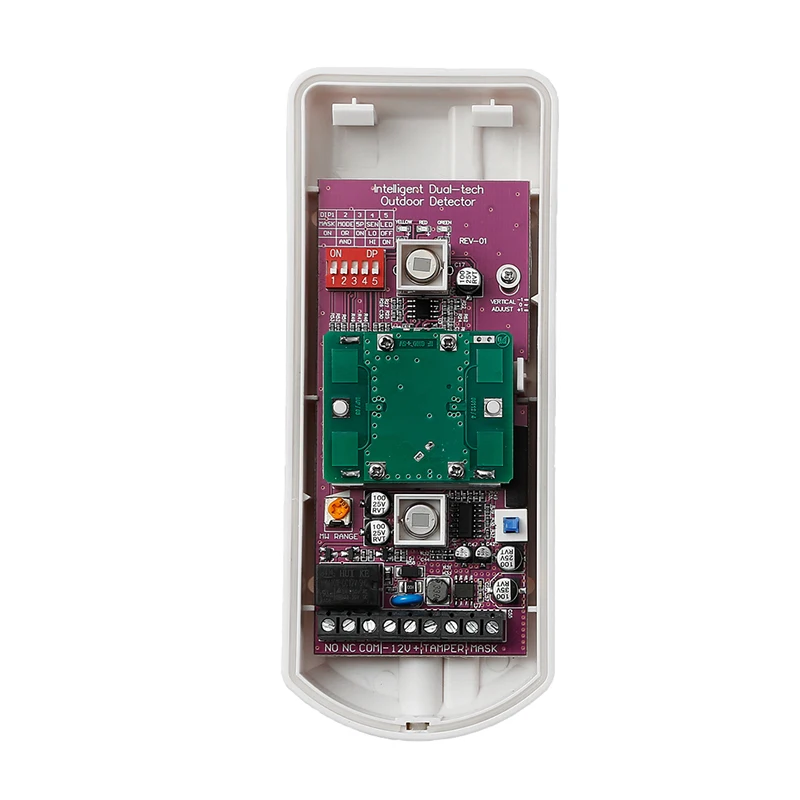

-Detection mode: MW5P-OR – AND
-Selectable detection sensitivity
-Alarm output NO/NC Select
-Anti white light
-Anti-pet ≥25kg
-Alternative Led OFF
-Micro-strip MW with pulse transmission
-18 beams Fresnel lens with down-view window on its 4 planes
-Vertical adjustment
-Air-proof optical parts
-Wall inlay
-Total view:100°， Monitoring scale: 15m
-Corner and wall installation. Universal connector
– Universal connector for option,

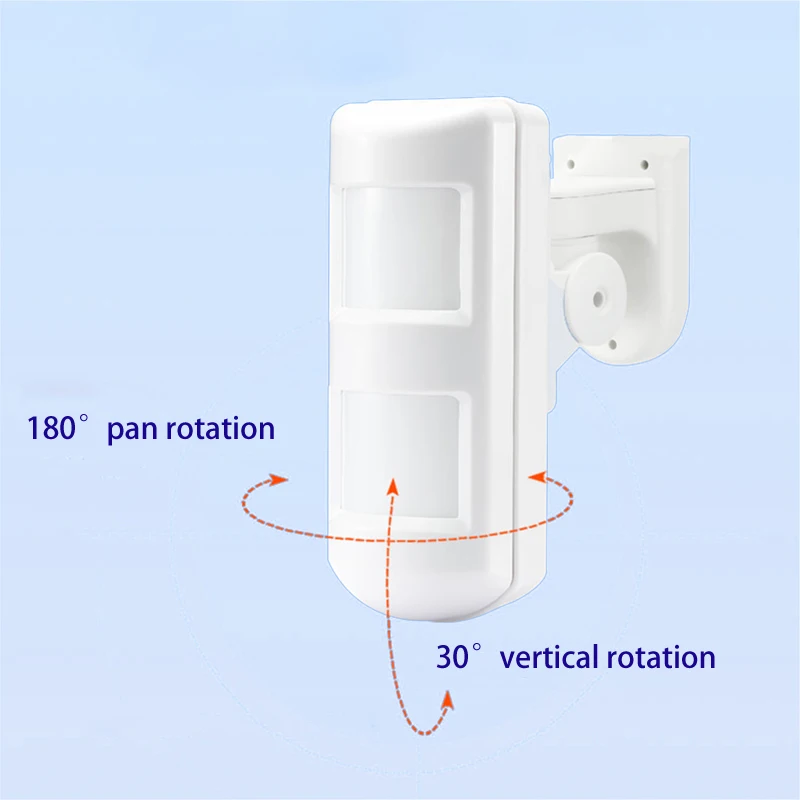

-90°horizontal adjustment 30°vertical adjustment
Kindly Reminder:
This wired sensor can’t work alone, it can work with all alarm system which support wired zones.
Package content:
1pc wired pet PIR + MW motion sensor ( including bracket and screws).
Product Show:
