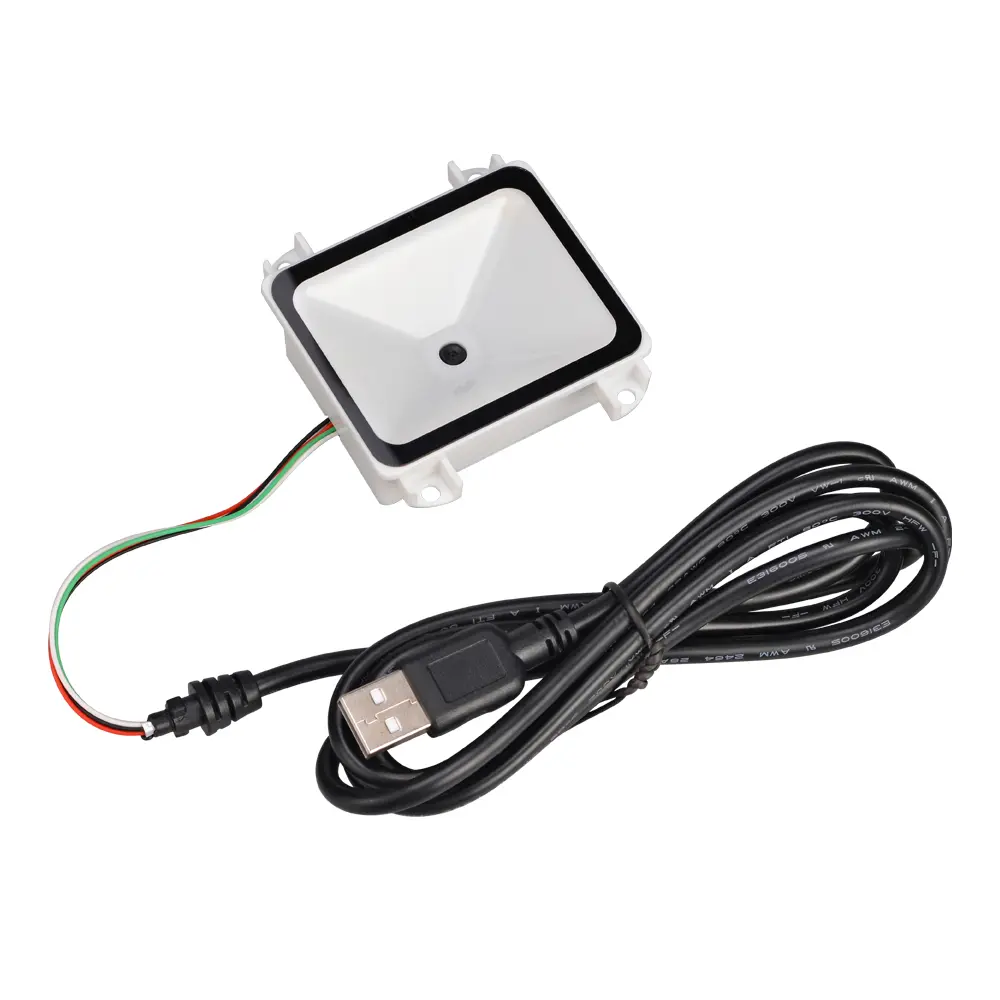

Barcode Scanner Kiosk Small Fixed Mount Vending Machine Barcode Reader USB RS232 TTL Interface
Features:
* CMOS image sensor.
* No driver, plug and play.
* Wide angle lens design, scans a large area.
* Effectively scans barcodes in sensitive lighting conditions, including through glass/plastic, in bright sunlight,
in dark environments, or on curved/reflective surfaces.
* Super scanning and decoding ability, can read incomplete and fuzzy codes.

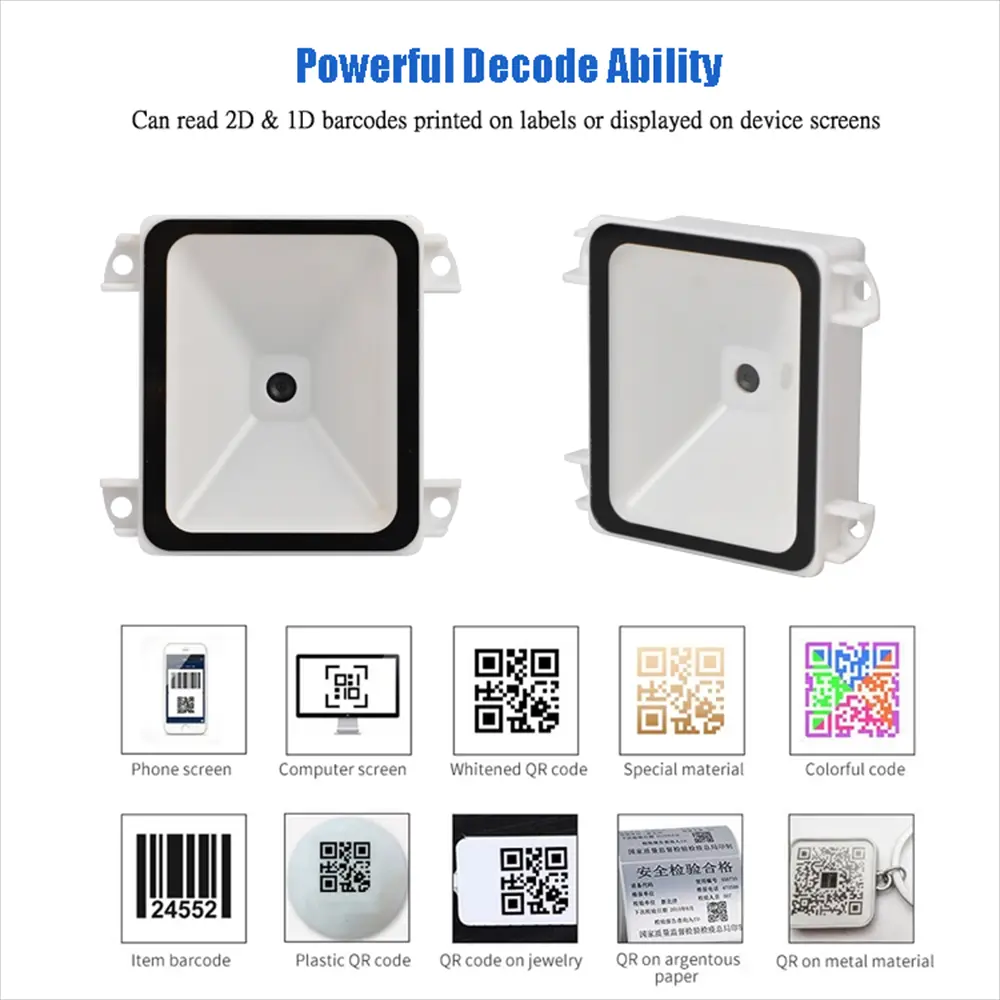

* Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens

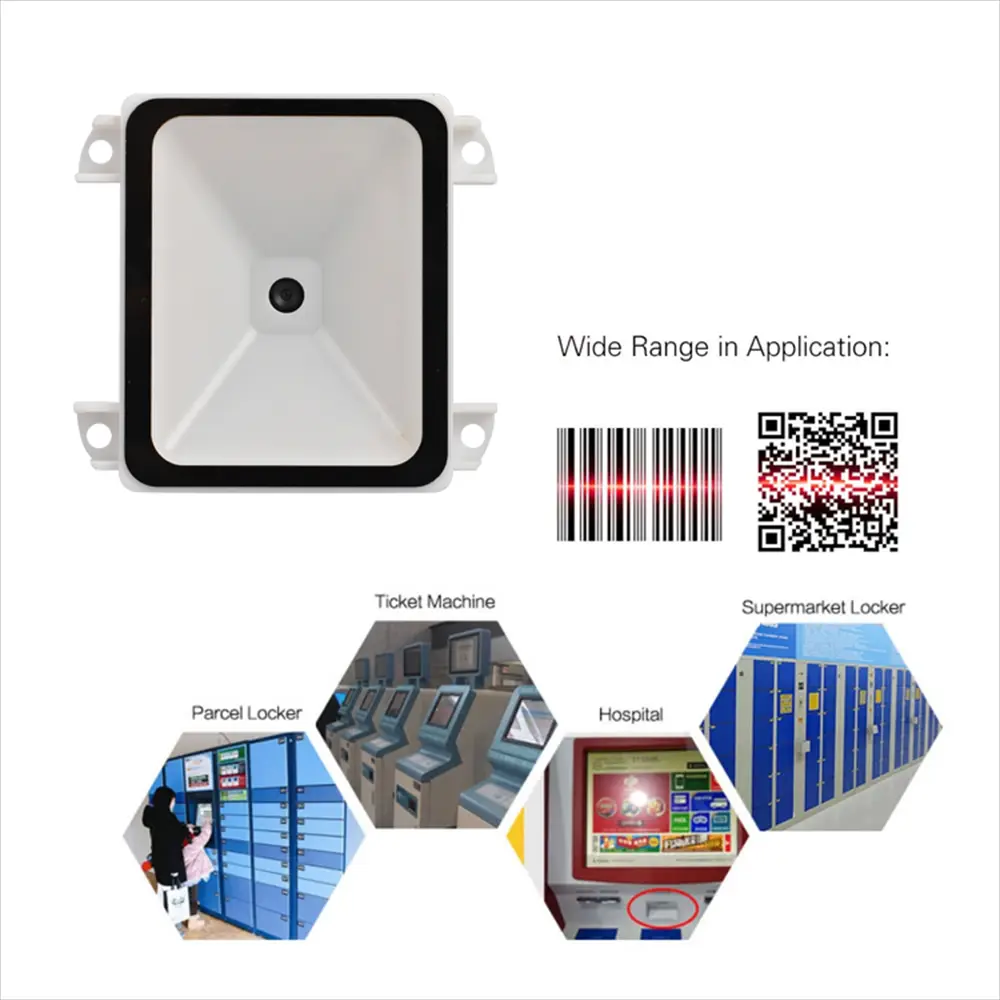

* Application fields: Electronic tickets/coupons, mobile marketing and office automation, kiosks,medical equipment,the series fixed mount barcode scanner is able to read barcodes from paper and mobile phones.
* Can be customized according to customer demand.

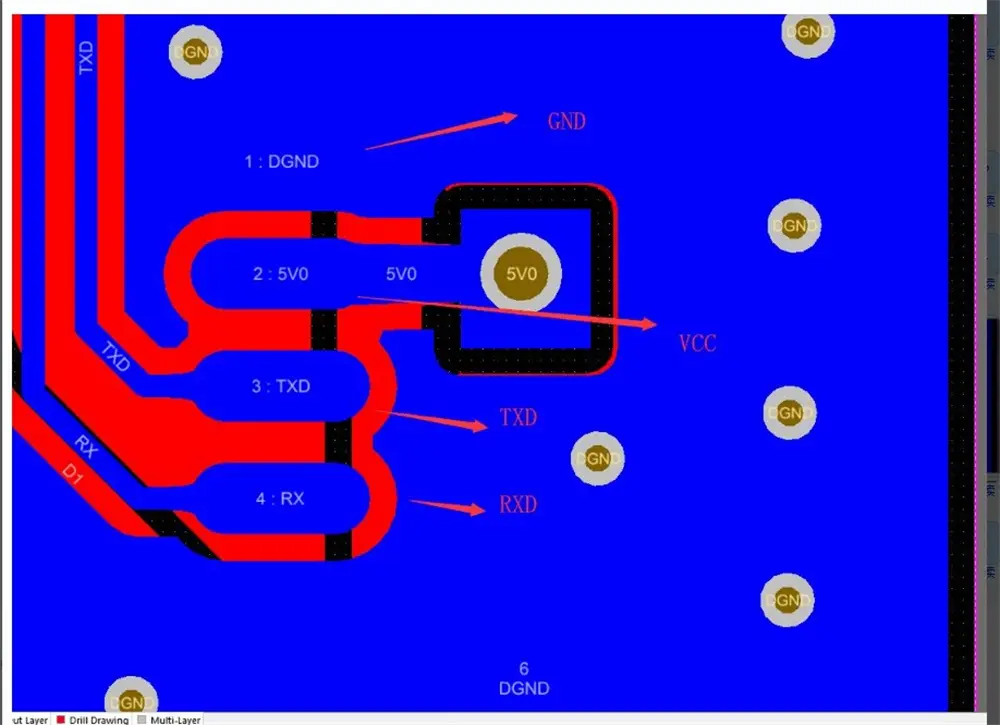

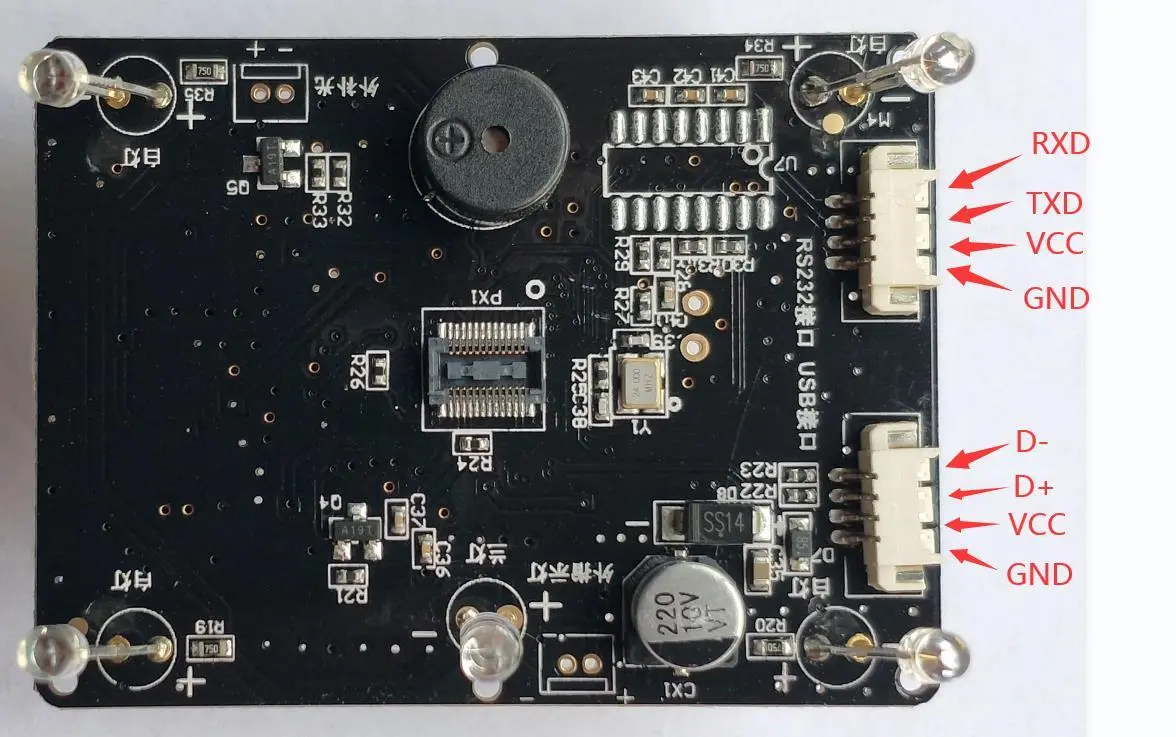

TTL use Guide
Product Specification | YHD-M900D 2D Embedded Barcode Scanner Module |
Imaging Sensor | CMOS |
Optical Source | 620nm Visible red light diode |
Trigger Mode | Continuous,Auto-Induction |
Indication | Buzzer & LED |
Resolution Ratio | 640*480 |
Interface | RS232,USB,TTL |
Decoding Speed | 500times/second |
Resolution | 4mil |

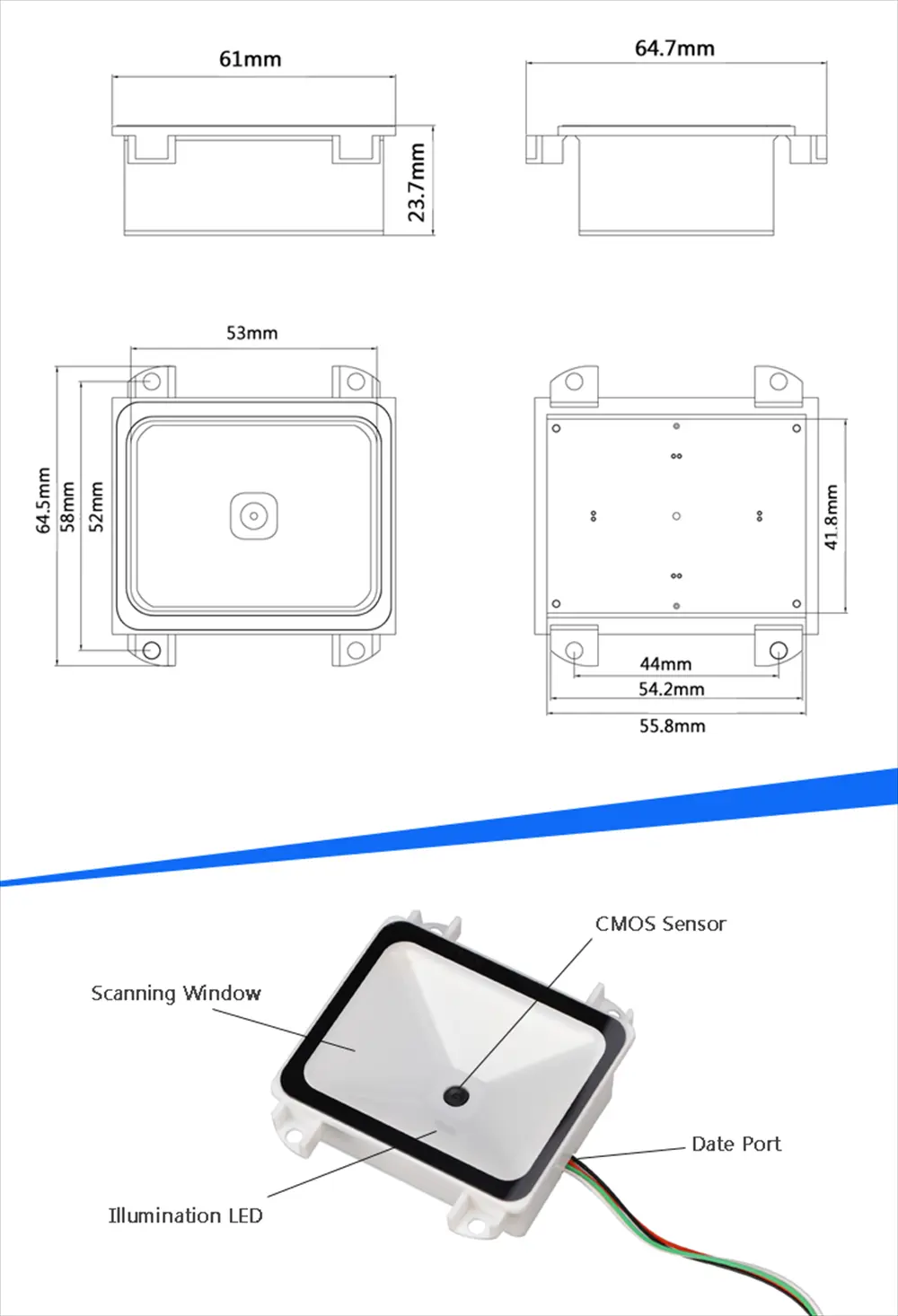

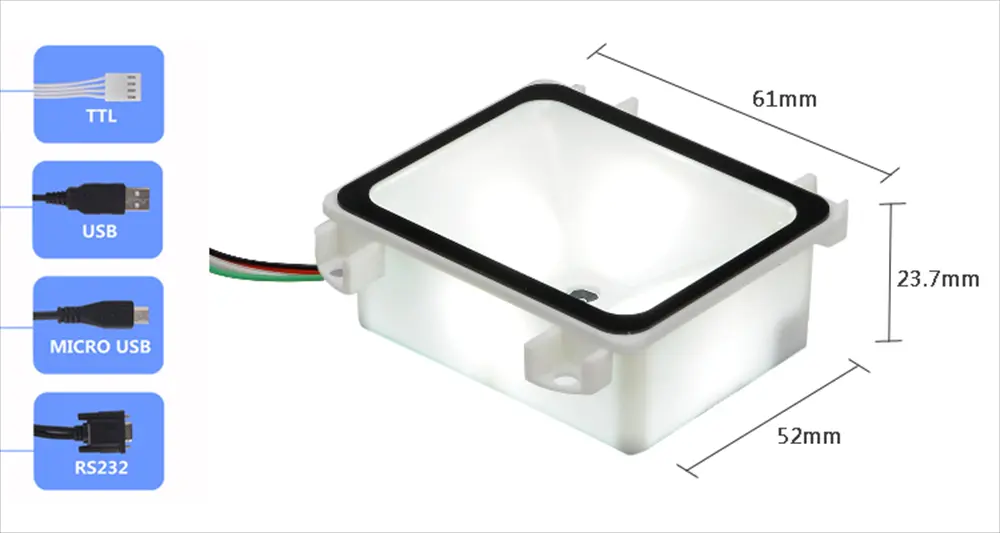

Size | 61*48*24mm |
Minimum Contrast | ≥ 25% |
Decoding Capability | 1D:UPC/EAN,with complementaryUPC/EAN,Code128,Code39, Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1Databar,etc. 2D:PDF417QR Aztec DataMatrix Maxicode MicroPDF417,etc. |
Depth of field | 40-120mm Code 39(5MIL) 20-300mm EAN-13 (13MIL) 20-150mm PDF417(6.8MIL) 15-250mm QR Code(20MIL) |
Scan Angle | Roll 55°,Pitch± 25°,Skew±75° |
Working Voltage | 5V |
Current | Max. : 212mA Working : 156mA~212mA Stand-by : 156mA |
StorageTemperature | -40°C ~ 70°C/ -40°to 158°F |
WorkingTemperature | -20°C ~ 60°C/ -4°to 140°F |
Relative Humidity | 0 ~ 95% |
Drop test | 1.5m fall to concrete |
Certificate | CE,FCC,RoHS,IP54 |
