Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B)

Price range: £52.99 through £53.99

Ships From

Clear

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B)

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B) - Image 2

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B) - Image 3

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B) - Image 4

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B) - Image 5

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection (VC60B) - Image 6

Buy With Confidence 100% Safe Payment

SKU: 1005006783824858

Categories: Pat Testing Safety Equipment and Electrical Accessories.

Multimeter Insulation Electrical Test AC 250V/500V/1000V Megohmmeter Tester Electric Maintenance Testing Inspection

Features:

1.An accurate,reliable and easy to measure insulation resistance,voltage.

2.Wide measuring range,voltage:250V/500V/1000V, resistance:0.1MΩ～2000MΩ.

3.Large LCD backlight display,convenient to read data,max display counts 1999.

4.Stable performance,LED light indicator,auto power off and low battery indication.

5.Wide range of applications,such as transformer,motor,cable,switch and electrical facilities.

Display Count:1999

Test Voltage: 250V/500V/1000V

Short current: 1.8mA,1.8mA,1.6mA

Accuracy: ±(4% of reading±2)

Meduan resistance: 20MΩ~500MΩ；50MΩ~1000MΩ；100MΩ~2000MΩ

Terminal position: L .E

Test Voltage: 750V ±(1% of reading±6)

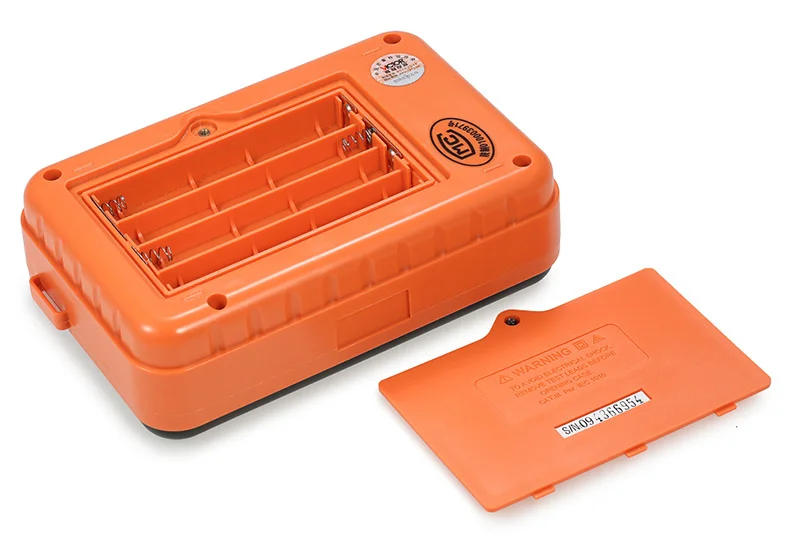

Power: 6 x 1.5V AA battery (Not included)

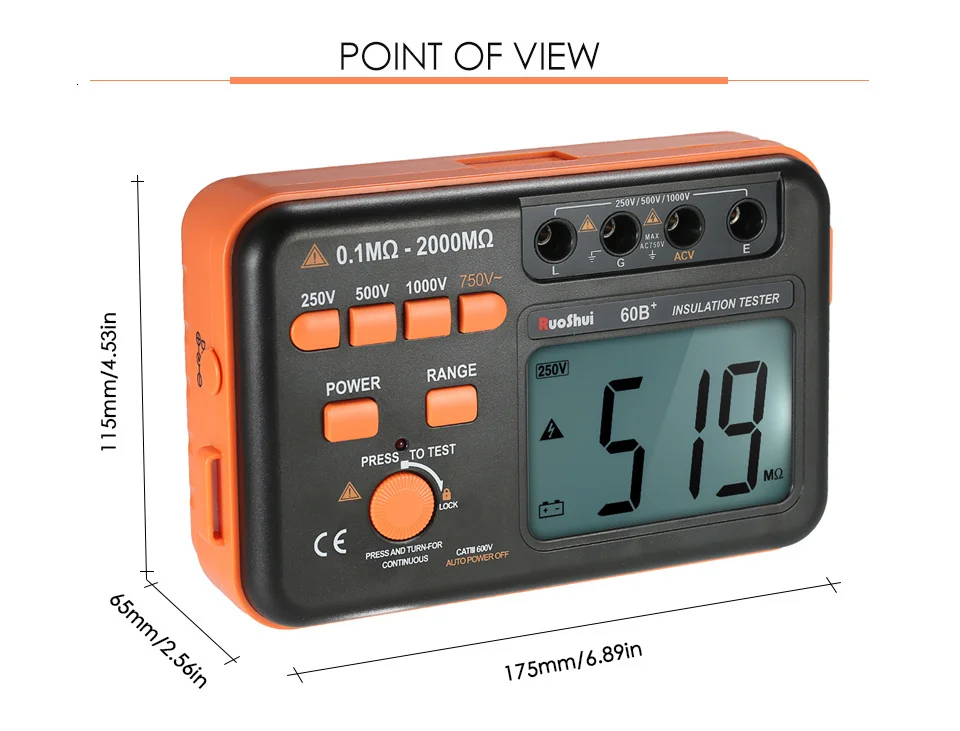

Product Size: 175 x 115 x 60mm

Product Net Weight: 504g

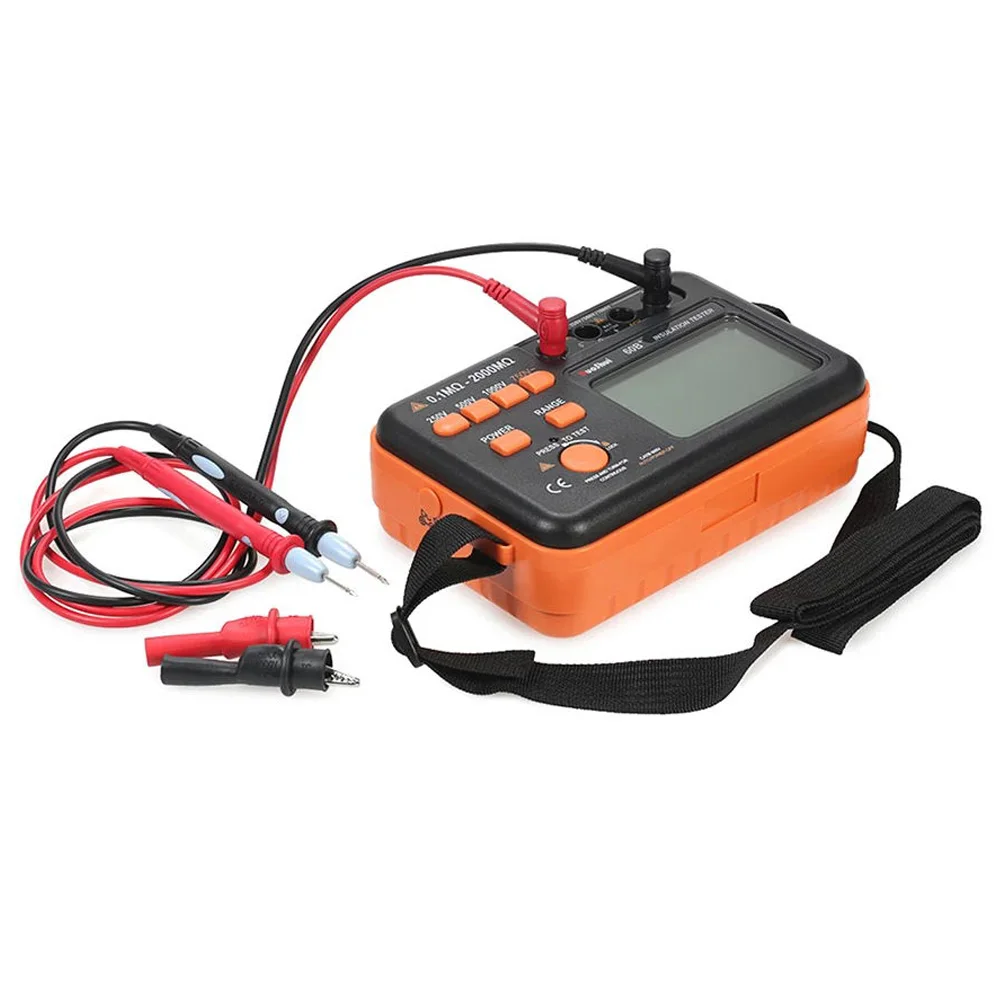

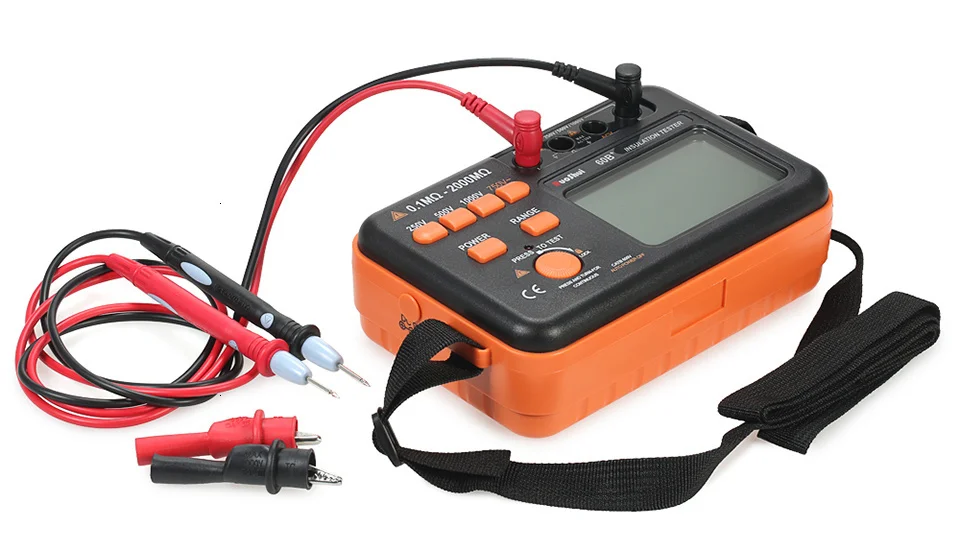

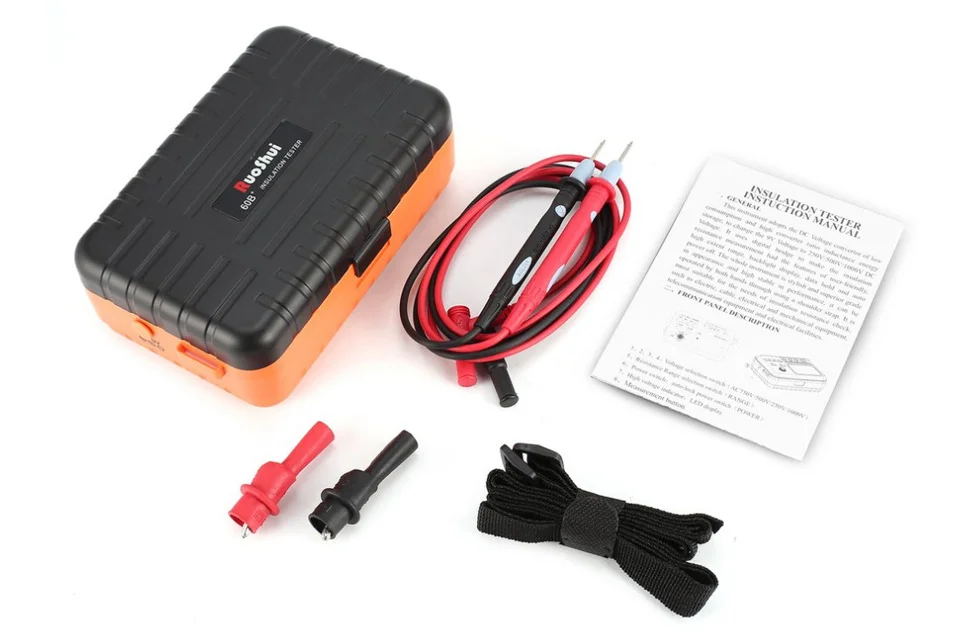

Package List of Standard packing:

1 x 60B+ Insulation Resistance Meter

2 x Test Leads Pens

2 x Alligator Clips

1 x User Manual

1 x Strap

Model	RuoShui 60B+
Specification
Measuring Voltage	250V±10%	500V±10%	1000V±10%
Range	0.1MΩ~20 MΩ	0.1MΩ~50 MΩ	0.1MΩ~100 MΩ
	20MΩ~500 MΩ	50MΩ~1000 MΩ	100MΩ~2000 MΩ
Accuracy	±(4.0%+2)
Current of Short Circuit	1.8mA	1.8mA	1.6mA
Median Resistance	2MΩ	2MΩ	5MΩ

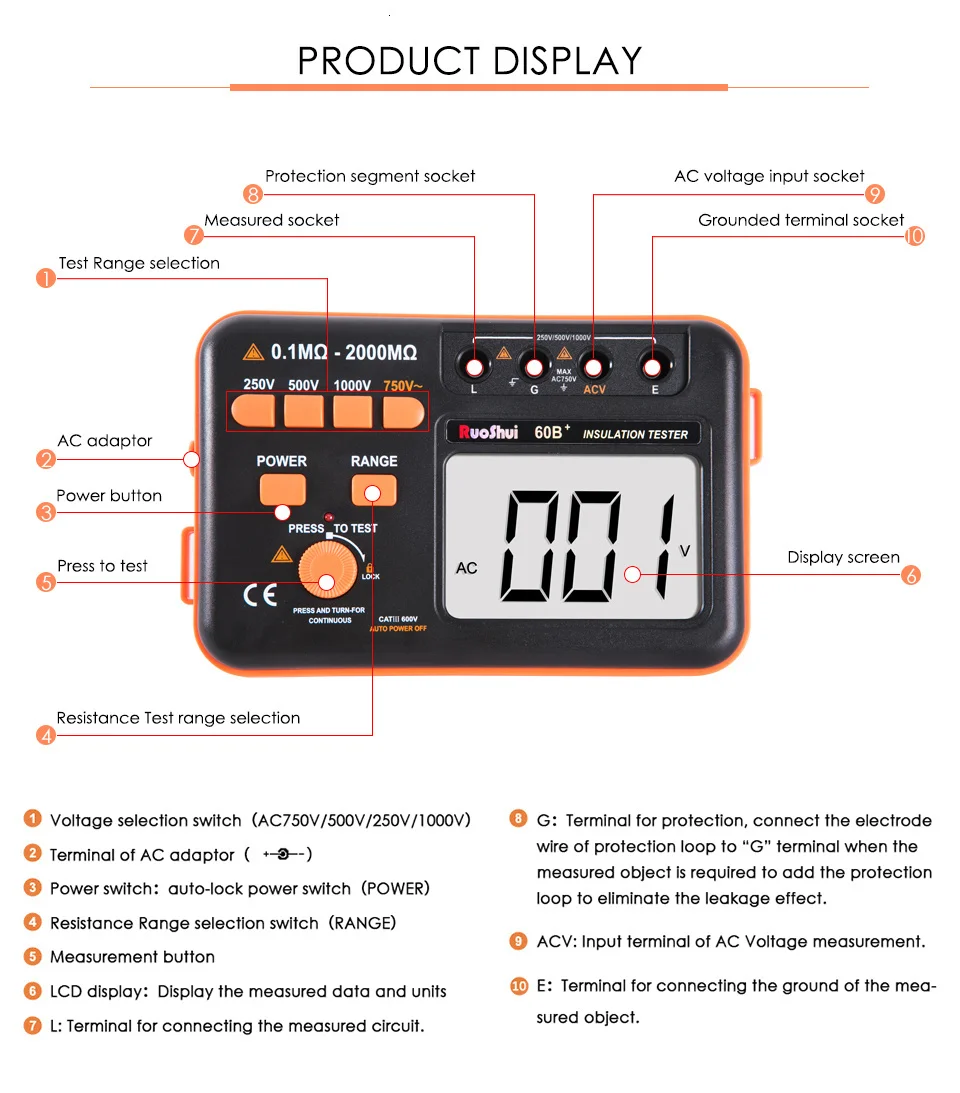

Jack Position	L/E
Features
Low Battery Indication	√
Backlight display	√
Alarm Function	Red indicator light is illuminated
Over Load Indication	√
Unit Symbol Display	√
Auto Power Off	√
Max. Display	1999
LCD size	84.8×59.8mm
Using Temperature	(0~40)℃
Relative Humidity	30%RH~85%RH
Input Impedance	1MΩ
Frequency Response	(50-200) Hz
Over Range Display	“1”
General Information
Power Color	Case: black, Holster color : orange
Power Supply	9V (6×1.5V AA ) ; AC adapter (not included)
Product Size	175×110×70mm
Product Weight	About 630g
Standard Accessories	Test leads, battery , instruction manual, shoulder strap

VC60B+ 1000V Digital insulation tester Use 6 * 1.5V AA Alkaline Battery (Not Included)
