£41.99 – £47.99

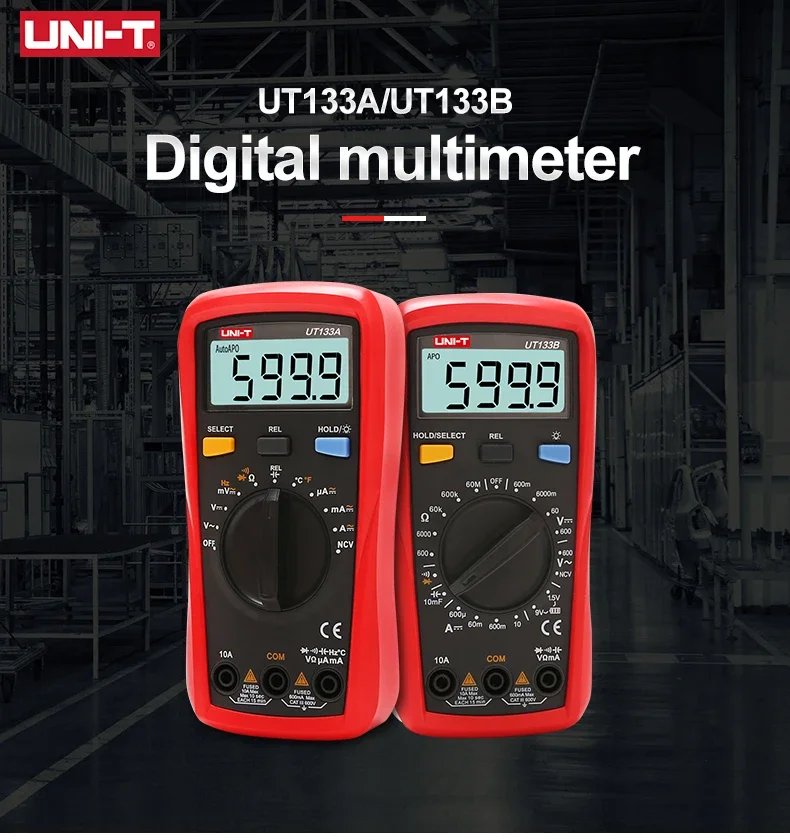

UT133A UT133B Digital Multimeter

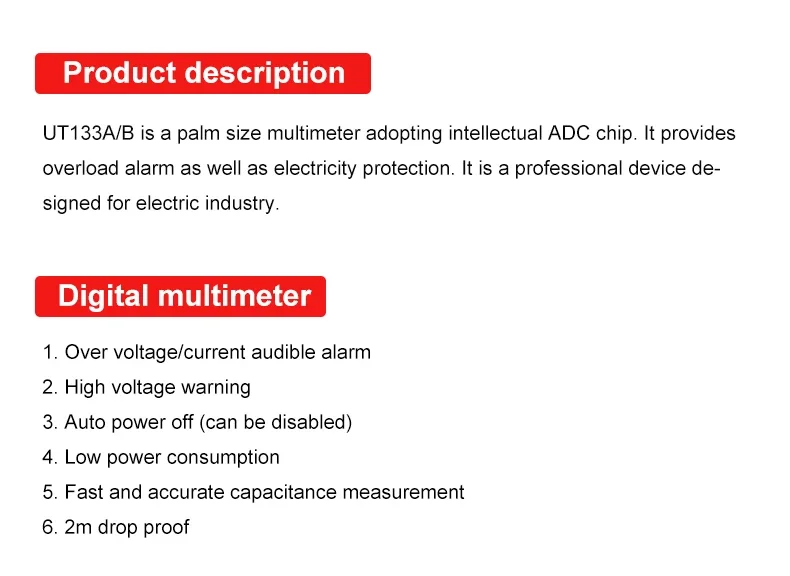

UT133A/B is a palm size multimeter adopting intellectual ADC chip. It provides overload alarm as well as electricity protection. It is a professional device designed for electric industry.

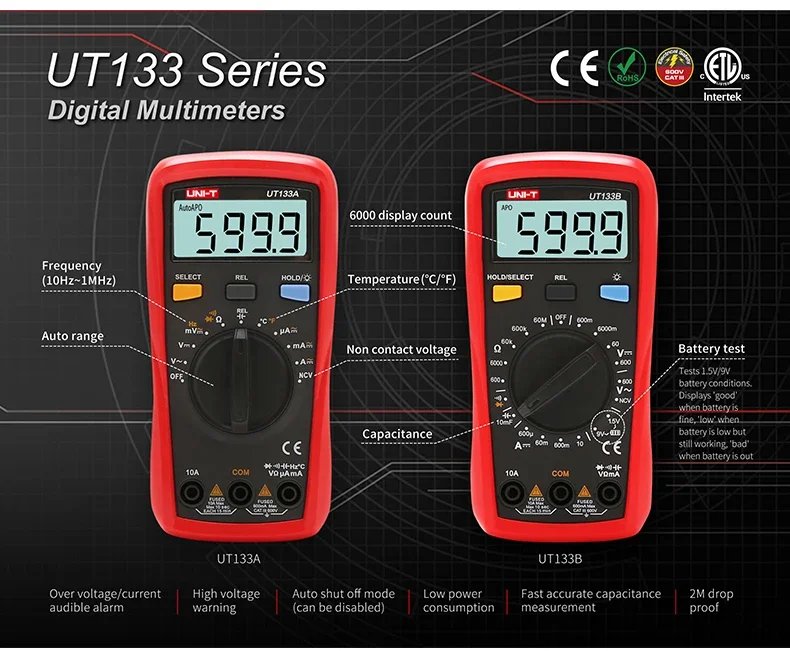

Features
1.600V DC AC voltage measurement
2. Overvoltage/overcurrent audible alarm
3. High pressure warning
4. Continuous buzzer
5. Automatic shutdown (can be disabled)
6. Low power consumption
7. Frequency and temperature measurement function (only UT133A)
8. Fast and accurate capacitance and resistance measurement
9. There is a test probe holder
10. 2m drop resistance
Notice please: battery no include!
|

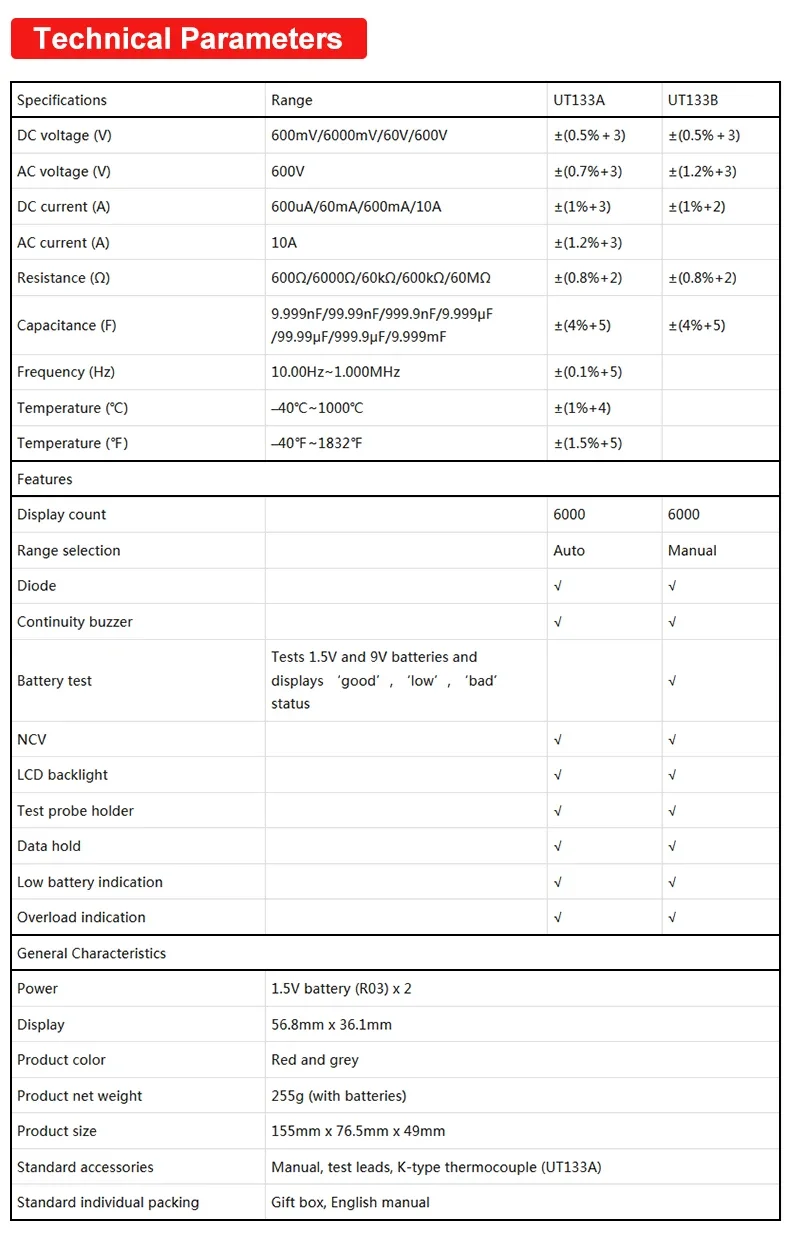

Specifications |
Range |
UT133A |
UT133B |
|
DC voltage (V) |
600mV/6000mV/60V/600V |
±(0.5%＋3) |
±(0.5%＋3) |
|
AC voltage (V) |
600V |
±(0.7%+3) |
±(1.2%+3) |
|
DC current (A) |
600uA/60mA/600mA/10A |
±(1%+3) |
±(1%+2) |
|
AC current (A) |
10A |
±(1.2%+3) |
|
|
Resistance (Ω) |
600Ω/6000Ω/60kΩ/600kΩ/60MΩ |
±(0.8%+2) |
±(0.8%+2) |
|

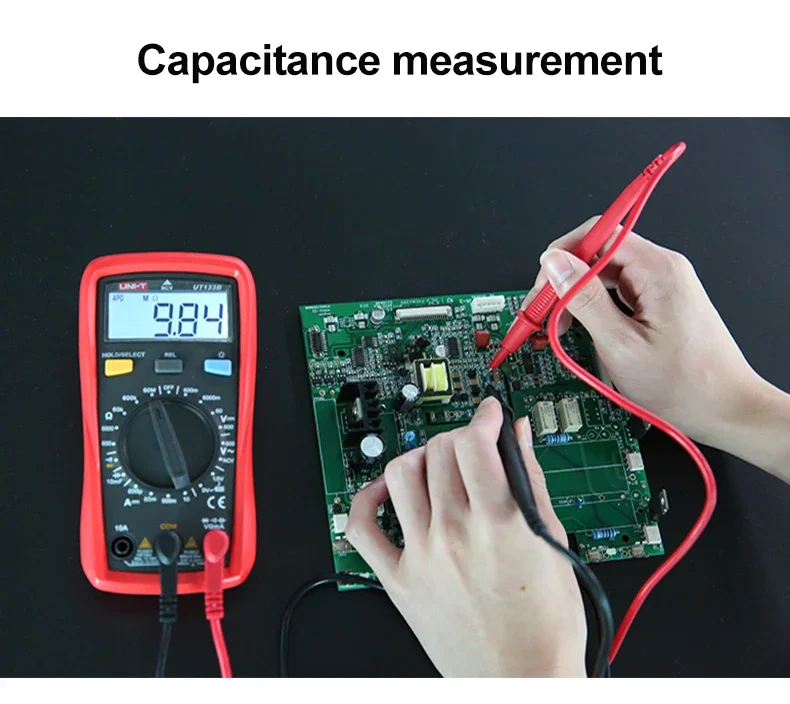

Capacitance (F) |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF |
±(4%+5) |
±(4%+5) |
|
Frequency (Hz) |
10.00Hz~1.000MHz |
±(0.1%+5) |
|
|

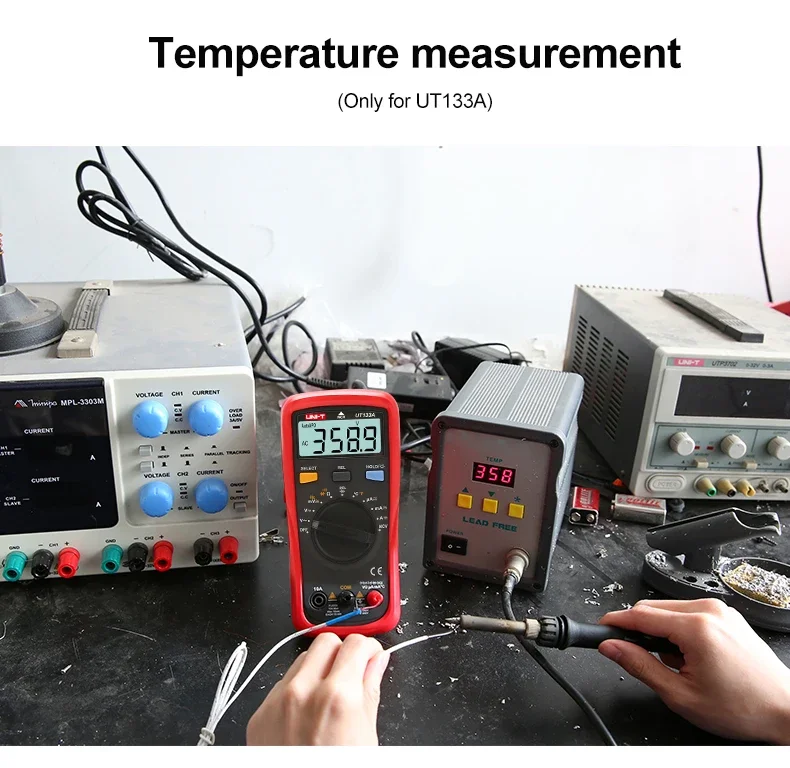

Temperature (℃) |
‒40℃~1000℃ |
±(1%+4) |
|
|
Temperature (℉) |
‒40℉~1832℉ |
±(1.5%+5) |
|
|
Features |
|||
|
Display count |
|
6000 |
6000 |
|
Range selection |
|
Auto |
Manual |
|
Diode |
|
√ |
√ |
|
Continuity buzzer |
|
√ |
√ |
|

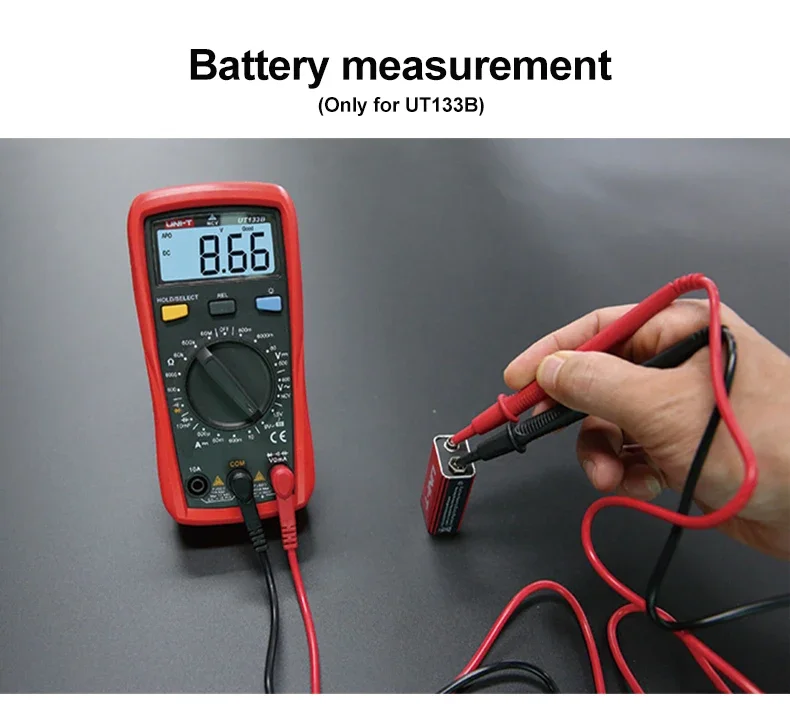

Battery test |
Tests 1.5V and 9V batteries anddisplays ‘good’, ‘low’, ‘bad’ status |
|
√ |
|

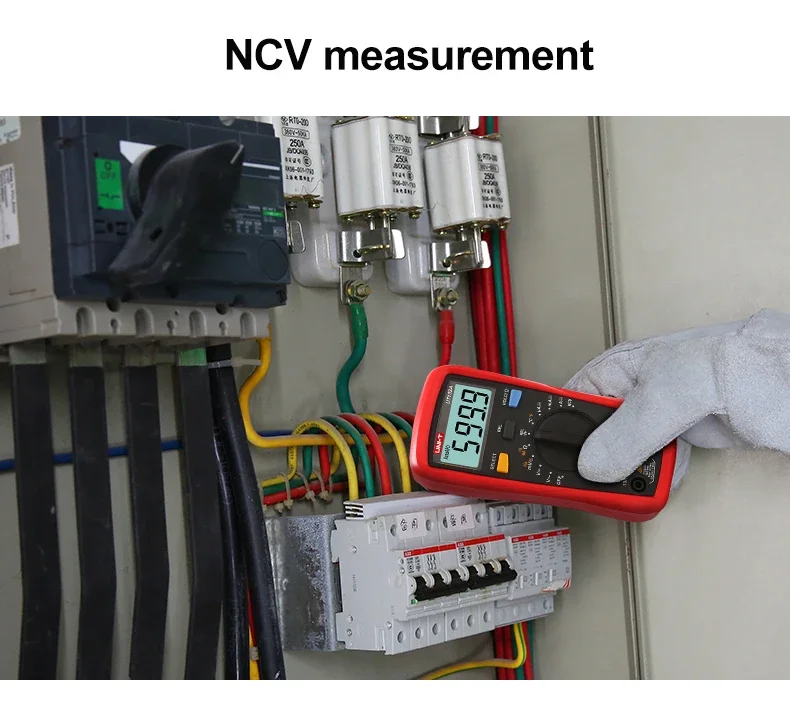

NCV |
|
√ |
√ |
|
LCD backlight |
|
√ |
√ |
|
Test probe holder |
|
√ |
√ |
|
Data hold |
|
√ |
√ |
|
Low battery indication |
|
√ |
√ |
|
Overload indication |
|
√ |
√ |
|
General Characteristics |
|||
|
Power |
1.5V battery (R03) x 2(No include) |
||
|
Display |
56.8mm x 36.1mm |
||
|
Product color |
Red and grey |
||
|
Product net weight |
255g |
||
|
Product size |
155mm x 76.5mm x 49mm |
||
|
Standard accessories |
Manual, test leads, K-type thermocouple (UT133A) |
||
