4G wireless mode（Default）Choose 3G/4G Wireless modem mode as default, pulg in to standard SIM Card, KuWFi CPE will identify 3G/4G automatically.for some SIM Card should be update APN.

The LTE CPE Router with powerful signal with antenna , Internet access to internet via HSPA/LTE Data SIM Card. or Internet access/PPPoE work mode ,if you don have 4G sim card , you can use connect to modem work as Gateway mode.

EU verison

Network Frequency  for most Asia Europe Africa Middle East and South America Oceania Countries

4G LTE FDD :B1/B3/B7/B8 /B20

B1(2100MHz), B3(1800MHz)/ B7(2600MHZ)/B8(900MHZ)/B20(800MHZ)

3G WCDMA :B1/B8 2100MHZ/900MHz





US Version

Network Frequency for Canada/United States/Mexico and a few Central American countries



The US version sends US Plug by default,please leave a message  if you need another version Plug





If you are not sure, please feel free to contact us 🙂







It is Easy to connect and easy to carry in hand Sharing customer to 32 WiFi users,All you need to do is inserting the SIM card, then you will enjoy the WiFi with your friends with this portable 4G LTE router. Bridge WiFi and share network with your families and friends securely in the hotel or other public places. also good for outside camera Project.



Stream and share smoothly movie, music, photos with your families and friends at the same time.



Provide high-speed for 32 users simultaneously, make you have a greater wireless enjoyme no need to connect the broardband ,there is 4G ,there is wifi,just plugs the 4G SIM card and play！some sim card should be update APN .Produce a 2.4GHz WFi hotspot with a powerful signal and long range  WiFi coverage, good for camera project.





Specifications





Main Platform  RTL8192 ,802.11 b/g/n , 300Mbps MDM9207 , CAT4 , 150Mbps



LTE Ca4 MIMO 2*2,up to 150Mbps



3 RJ45 for LAN and 1 RJ45 for WAN



Transmission Range :50-100M



Working Temp : -10℃ ~ 40℃ for storage: -20℃ ~75℃ for working

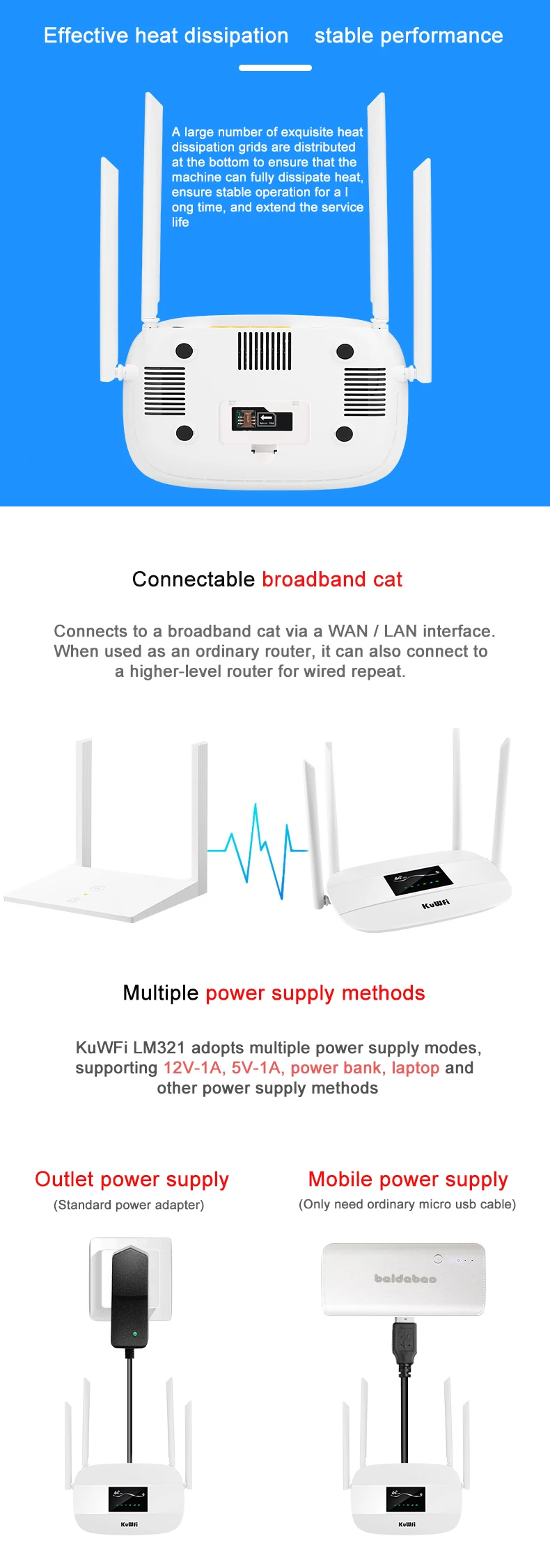

Power Supply :12V AA DC Supply



Size:190 mm x 34 mm x 31 mm



LAN:RJ45 x 4（1WLAN+3LAN, WAN port can also use as LAN port, both of WAN and LAN ports are marked by different color on Housing）





Features



4G WiFi router provides a wireless transmission speed up to 300Mbps.Produce a 2.4GHz WFi hotspot with a powerful 3,000 square meter WiFi coverage.

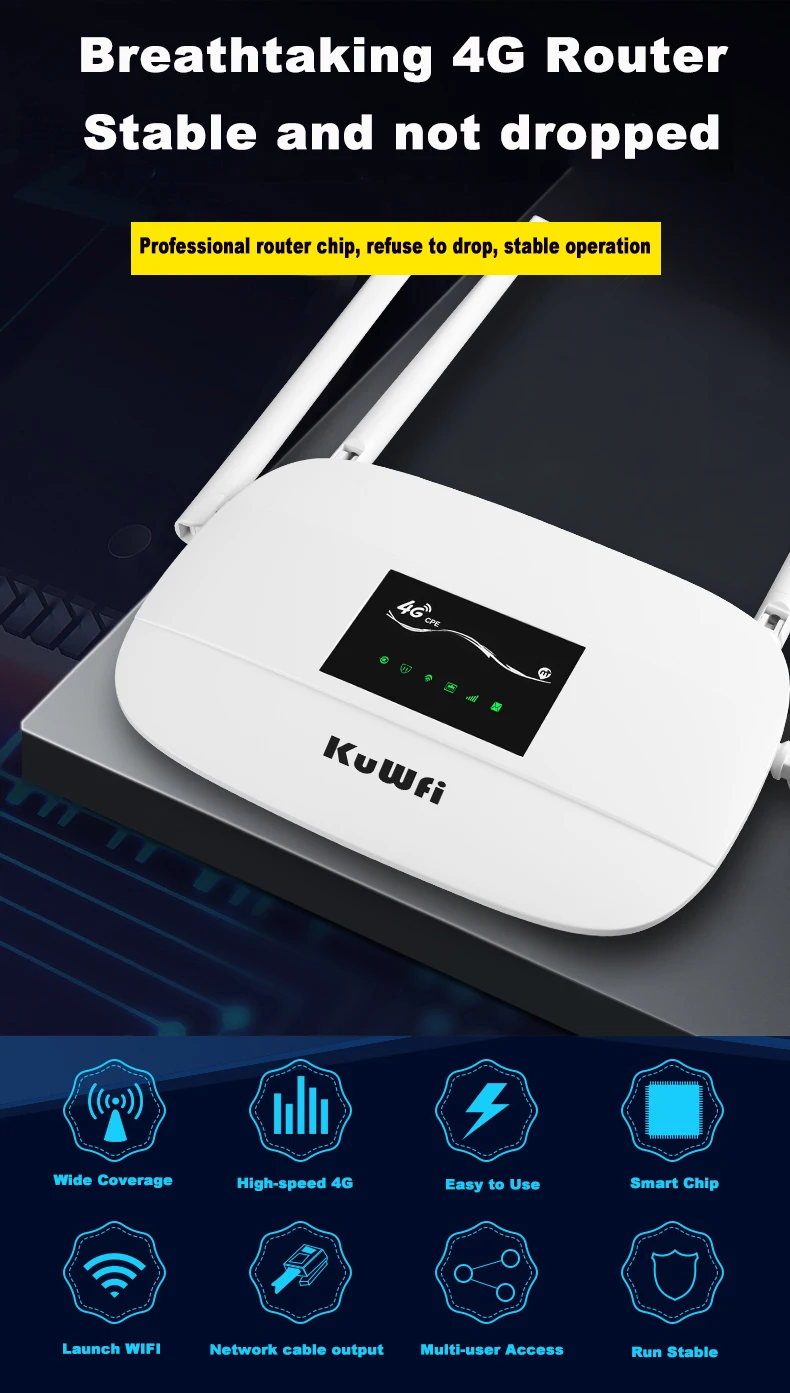

Internet connection sharing reaches to 32 WiFi users,Internal dual-antenna, selectable 4G / 3G signal A stylish and slim design to fit in perfectly with your home.With LED indicator display, see the status easily.supports 2.4GHz WiFi, WiFi speed up to 300Mbps, effectively reduces the same frequency interference, improves the wireless transmission range, eliminates dead zones.



allows you to enjoy the wireless freedom anywhere around your home. Comes with a USB port charger for moblie Phone Supports WPA / WPA2 encryption, with a WPS button, simply presses the WPS button

Provide high-speed for 32 users simultaneously, make you have a greater wireless enjoyment wherever you go.

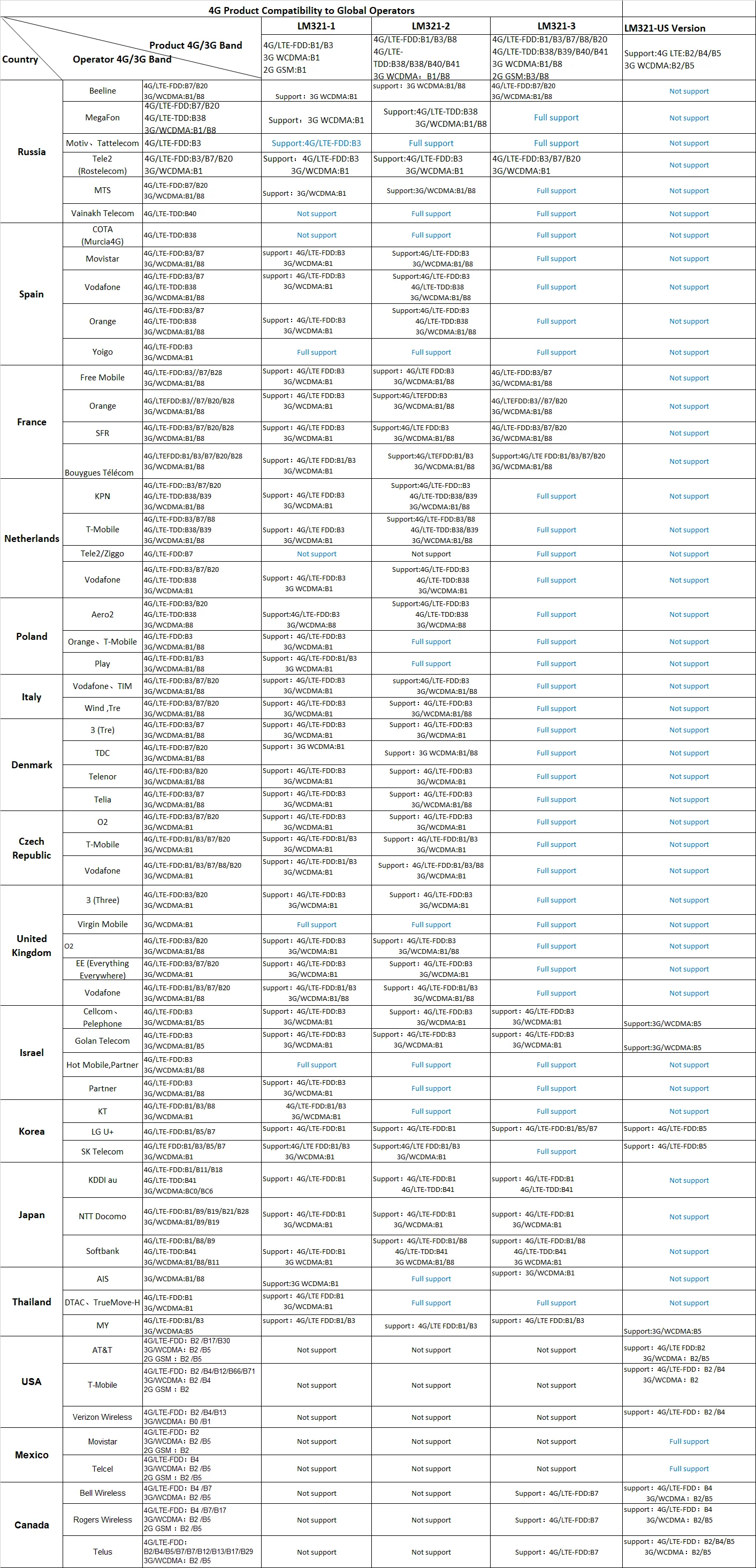

please keep in mind need to check your sim card Network Frequency support the router or not , we have check the Lte CPE work with Caribbean,Europe,Asia, Middle East & Africa.



Please pay attention:  due to model upgrade, this product has cancelled the WPS button.

And SMS function is not suitable for every countries or operators, some sim card can not receive the message. If you do mind, please do not choose it. thank you in advance.



FAQ

How to use the router ?

1.Pulg in standard SIM Card to convert WiFi(you sim card must have data plan, if not, the router can’t receive 4G signal)

2.Use it without broadband also access to enjoy surfing the Internet

connect the PC wifi SSID 4G-CPE-XXXXXX Password is A1b2c3d4

how to Log in web interface？

log in web UI 192.168.100.1, and see web interface show work mode signal and IP address. then click settings and find Profile Management -add sim card provider ,then Write correct APN（APN confirm from SIM Card provider ） then the “APPLY” button

how to change wifi ssid name and password？

find Wlan -Basic -setting (revise SSID) Password Revise then apply.

Why 4G signal is not good ?

Please confirm that you have choose 4G pricrity and 4G signal is good in your place.

how many work mode of the router ? ★★★★★

1.4G to WiFi ,

2. 4G to Lan ,

3. PPPoE ,（Broadband）

4. WiFI Repeater mode.
